PLM Power Driven Subaru EWG Up Pipe with Block Off Plate 38mm

PLM Power Driven Subaru EWG Up Pipe with Block Off Plate 38mm

Regular price
Regular price
Sale price
Unit price
Sold out

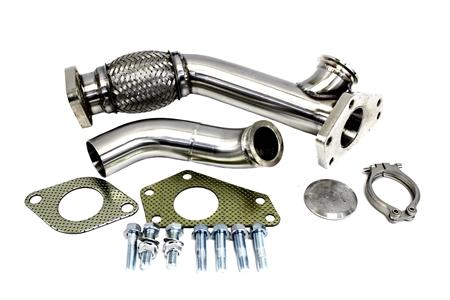

PLM Private Label Mfg Power Driven Subaru EWG UP-PIPE WITH BLOCKOFF PLATE 38mm features a unique designed Up-pipe which gives you the option to install a 38 mm EWG (EXTERNAL WASTEGATE.)

The entire piece is manufactured from high quality stainless steel for superior heat resistance and strength.

External wastegates allow for quicker spool because they do not cause turbulence in the exhaust stream and also give better boost control. Unleash the potential of your motor with our high flowing EWG UP-PIPE. 10-40hp results depending on your setup. No modifications are needed as it is a direct bolt-on unit to the OEM header or turbo.

This UP-PIPE is ideal for all forms of competition; Autocross, drag racing and road racing.

Vehicle Application:

2002-2014 WRX
2004-2019 STI
2004-2006 Baja Turbo
2004-2013 Forester XT
2005-2009 Legacy GT
1991-1994 Legacy Turbo
2005-2009 Outback XT
Does not work for RHD (Right Hand Drive)

Includes Gaskets & all necessary hardware.

Brand New In Box
EWG V band with Dump Tube
Made of 304 Stainless steel
One year limited warranty
Quality Flex Joint
2.0mm Piping Thickness (everyone else use 1.5mm we use 2.0mm)
Flange is .5" which is just about 1/2" thick
18G on the 304 S/S. Measured at .049" to .050"
Hand tig welded
Minimal internal steps for maximum flow
Stainless Steel Construction
1.95" Inlet and 1.95 outlet
Precision CNC Mandrel Bent
10+whp gain
Flex joint that is NOT located in the bend which adds life expectancy to the flex section.
Many other up pipes have a flex right in a sharp bend so all the exhaust/turbulence is hitting up against it.
Reduce turbo lag
