TURBO INLET PIPE UPGRADE KIT, FITS HONDA CIVIC TYPE R 2017 +

PRODUCT FEATURES

• Fits 2017+ Honda Civic Type R with Mishimoto Performance Intake
• Precision CNC-machined cast-aluminum turbo inlet connection
• Larger diameter inlet pipe reduces pre-turbo air restriction to improve spool
• 16.7% less restrictive than the stock inlet pipe
• Robust 4-ply silicone inlet coupler adapts MAF housing to the larger diameter inlet pipe
• CNC-machined EVAP hose flange
• Bead-rolled pipe ensures a leak-free seal
• Durable micro-wrinkle powder-coated finish available in black or red
• Includes stainless-steel worm gear clamps for installation
• Mishimoto Lifetime Warranty

DESCRIPTION

Helping your engine breathe better is a great way to extract maximum performance for a small investment. In addition, intake/exhaust modifications are fantastic steppingstones that provide even greater benefits as you begin to upgrade other systems of your vehicle. Following the release of our Performance Intake for the 2017+ Civic Type R, our engineering team found another aspect of the induction system that could benefit from innovation. The stock turbo inlet pipe is a very sturdy cast-aluminum component that supplies ample airflow for stock and lightly modified vehicles. Despite this, the internal pathway leaves room for improvement for those seeking maximum airflow.

Using the latest in 3D printing, CAD modeling, and flow bench technology, we created an optimal pathway for airflow from the air intake box to the turbocharger. These enhancements result in an inlet pipe that is 16.7% less restrictive than the stock unit.

Our 2017+ Civic Type R turbo inlet tube is constructed with a robust CNC-machined cast-aluminum turbo compressor inlet connection flange. This mating surface is designed to OEM specifications, providing a perfect bolt-on fit. The upper portion of the tube is fabricated from mandrel-bent aluminum piping, which is professionally TIG welded to the cast lower.

This kit includes a 4-ply silicone coupler to mate the Mishimoto Performance Intake MAF housing with our new inlet tube, as well as high-quality stainless steel worm-gear clamps and an EVAP hose adapter flange to make installation a breeze. We offer the option of either red or black powder-coated finish, providing an excellent aesthetic upgrade for your engine bay. As with all our products, this Inlet Pipe Upgrade Kit includes our signature Mishimoto Lifetime Warranty.

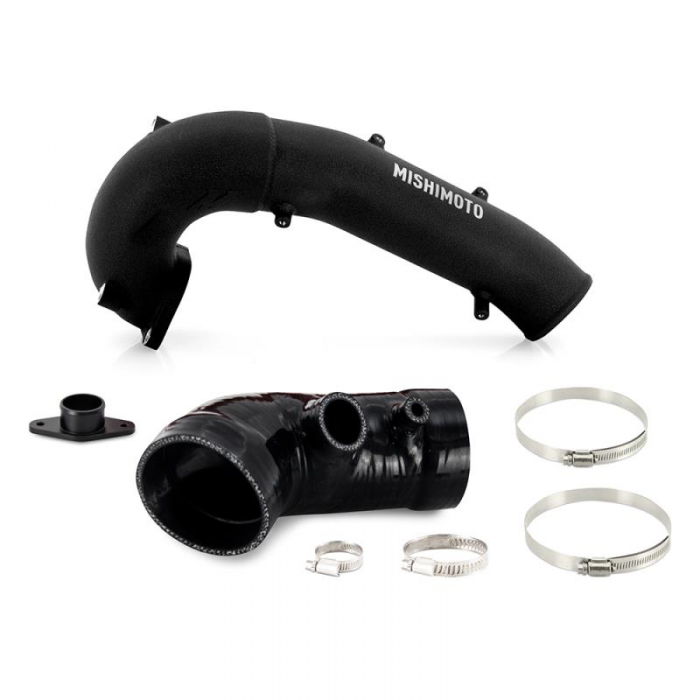

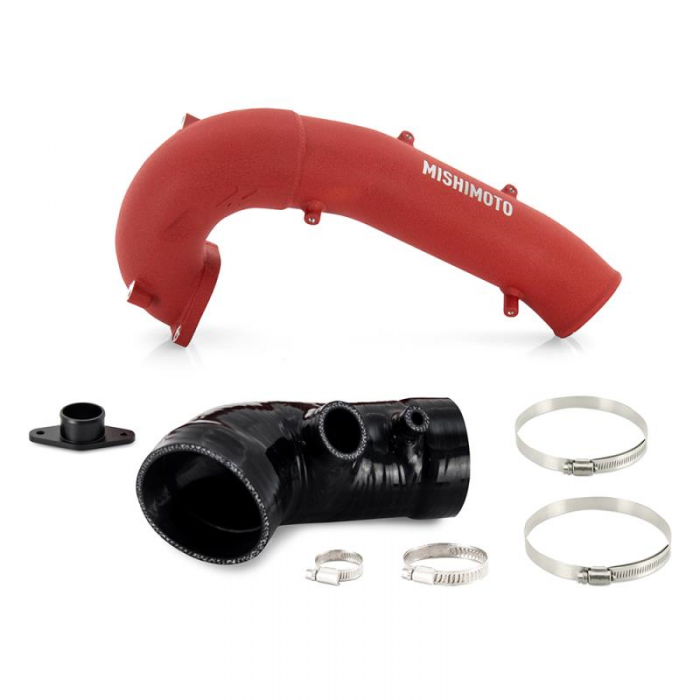

PURCHASE INCLUDES

(1) Aluminum Turbocharger Inlet Pipe
(1) Silicone Inlet Hose Adapter
(1) CNC-Machined Aluminum EVAP Hose Adapter
(4) High-Torque Worm-Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty

NOTES

• This turbo inlet pipe is an upgrade for the Mishimoto Performance Intake system. This product does not fit with the OEM intake system.
