- Programmable ECU interface.
- Connects via OBDII diagnostic port.
- USB 2.0 connection
- Works with Laptop or Desktop
- No ECU modification necessary.
- Live tuning
- 20 hours on board datalogging memory.
- FlashProManager Windows software.
- Check and clear diagnostic codes.
- Customizable laptop gauges.
- Readiness codes and smog check status.
- Dual calibration storage - upload from one of two calibrations stored in the FlashPro.
2006+ SI / Acura ILX tuning features
- Ignition, fuel, idle speed, table editing.
- VTEC window.
- MAP sensor based tuning.
- Rev and launch limiters.
- Map tracing & lambda overlay.
- Choice of either AFM or MAP based fuel tuning.
- Expanded fuel, ignition and knock tables for forced induction.
- 4 bar MAP sensor support (43 psi).
- Support for larger injectors.
- Injector latency / dead time.
- Individual cylinder fuel & ignition trim.
- Individual cylinder knock count
- Works with Hondata Traction control
- Starting calibrations for NA, forced induction & larger injectors.
For a more detailed feature lists see the FlashPro help file.
What do I need to run the software?
- Laptop or desktop
- 32 or 64 bit Windows XP, Vista, 7 or 8*
- USB 2.0 port
- Internet Access
* The software will also work on Intel based Macs running Bootcamp with the above specifications. Has been extensively tested and works well. Parallels and VMWare virtualization software has been tested with no problems found to date.
We've put together a series of training videos to describe the function and use of the FlashPro. Some of the videos were shot using pre-release software. Some displayed functions have changed slightly. View the videos in High Definition Full Screen to view the screen shots.

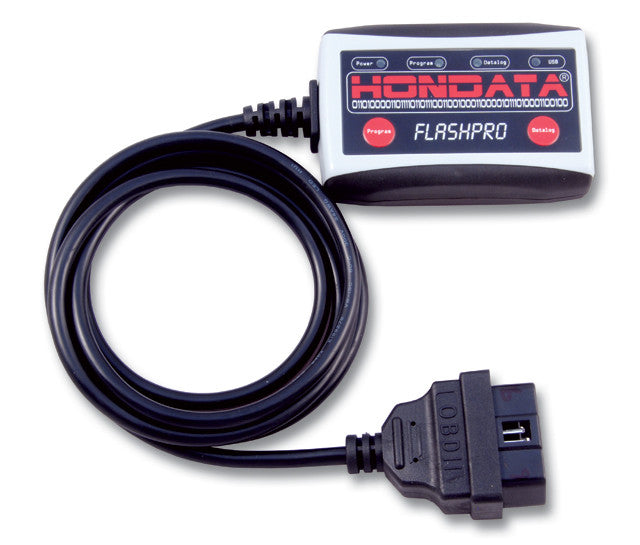

Hondata's programming tool for the Civic Si / Acura ILX.
This video covers the installation the FlashPro Manager software, the USB drivers, software registration and upload of a calibration.
Live tuning gives you the ability to tune your Honda or Acura on the fly without switching off the engine. Live tuning simplifies part throttle tuning and significantly reduces the time and cost of tuning your car.
A look a the extensive datalogging capabilities of the FlashPro and the many ways in which to examine your engine data. We touch on the datalogging of the air fuel ratios and how you can use it to adjust your tuning.
Questions and Answers
- Do I need to send my ECU to Hondata?
No. Your ECU does not need to be modified for FlashPro.
Can it improve the rev hang?
Yes. Revs will drop sooner after gear-change.
- Are there base calibrations?
Yes, for injectors ranging from 270-1300cc.
- What sort of power gains can I expect?
By way of example this car was baselined at the dyno with a test pipe, 06 Civic Si intake manifold and replacement air filter. All gains (35 hp) were made from FlashPro tuning.
- Do I need dyno tuning?
It shouldn't be necessary for common part combinations (intake, exhaust), but you still have the option of custom tuning if you wish to get a little more. Camshafts and race headers will need tuning to get the most of the them - it will depend on the manufacturer. Dyno tuning is highly recommended for forced induction.
- What about smog?
According to US and CA law the FlashPro is for off road use only. However, if you did smog you would find the readiness codes supported and complete as long as all your emissions systems are working and the car is correctly tuned.
- Will this work on more than one vehicle?
The FlashPro is locked to one vehicle and ECU at a time. It can be transferred to another vehicle after returning the ECU to stock and unlocking.
- Can I share the calibrations I make for my car?
- Do I need the laptop in the vehicle to reflash the ECU?
No. The FlashPro can upload either with or without a laptop.
-Will this support 64-Bit Windows Vista, 7 and 8?
- Can it control nitrous?
No. However, you can tune the ignition timing to make nitrous safer.
- Will dealers need a software license?
No. Every FlashPro comes with the full tuning software FlashPro Manager.
