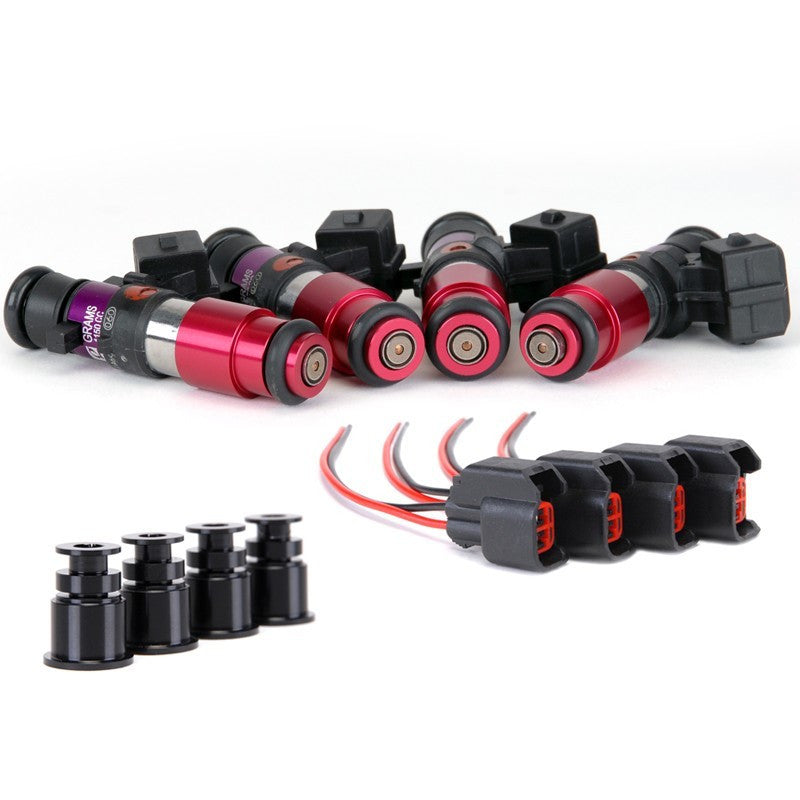

Each Grams Performance K-Series 1150cc/min. Fuel Injector Kit includes four Grams Performance 1150cc/min. Fuel Injectors and four Pigtail Adapter Harnesses for easy adaptation onto any Honda K-series engine.
An engine’s fuel injectors perform a vital role in the accurate metering and atomization of fuel. Grams Performance accomplishes this with its high-impedance Bosch Motorsports EV14 fuel injectors that are modified for high-performance use. Each injector is individually balanced, flow tested, and dynamically matched for characterization within one percent of one another. To ensure leak-free operation and optimal performance, each injector is then pressure tested up to 220 psi. The results are unmatched cylinder-to-cylinder consistency, even at low pulse widths, as well as optimal idle quality, response, and performance. Grams Performance Fuel Injectors’ ultra-fast and precise solenoids feature a linear response curve across a wide range of operating conditions and can accurately meter fuel even at the highest pressures and shortest pulse widths.
The EV14 injector’s superior ball/pintle valves combined with Grams Performance’s precision-modified nozzles allow for consistent performance up to 118 psi, making them suitable for a wide range of applications, yet without exhibiting any of the high-pressure problems often associated with other injectors. The optimized spray pattern also helps improve mixture preparation as well as atomization.
Grams Performance injectors are cold-cut with diamond grinders in less than three seconds for high precision without “pre-seating.” Abrasive cutting creates heat, which leads to poor spray patterns and the need for competitors to pre-seat their injectors to reduce distortion. Each injector is also fitted with high-quality Viton O-rings that are resistant to extreme temperatures and harmful oils found in some fuels.
Each injector set includes dead time compensation values to help ensure consistent air/fuel ratios and optimal performance when tuning. Grams Performance Fuel Injectors are carefully tested and matched in controlled laboratory environments using state-of-the-art equipment and are subjected to rigorous dyno, street, and race track testing to ensure proper performance in the most extreme conditions.
• High-impedance design (no resistor box required)
• Cold-machined tips for high-precision operation
• Ultra-fast solenoids for precise fuel metering
• Linear response across wide range of operating conditions
• All injectors balanced, blueprinted, and matched within one percent
• Compatible with all known fuels including gasoline, methanol, and ethanol
• Unmatched cylinder-to-cylinder consistency and optimal idle quality
