This product is estimated to ship late November
Features
Overview
With the Rebel K, all the hard work is done. It is the best, quickest, and easiest way to get your K-swap up and running!

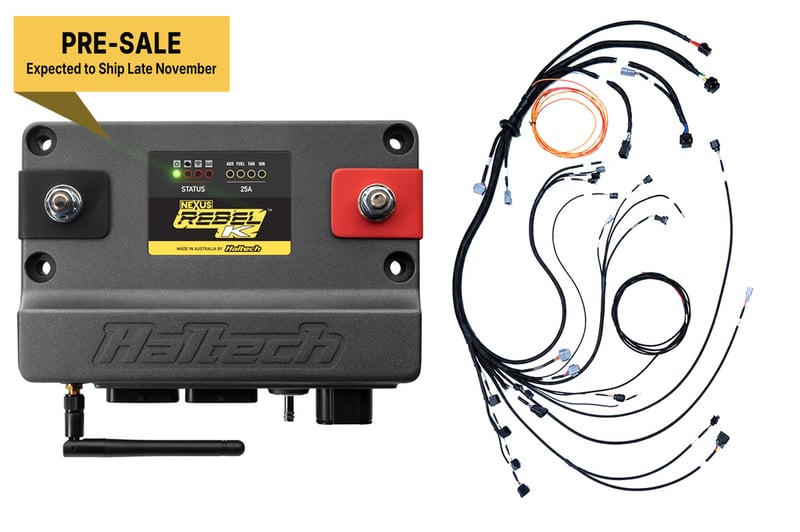

ECU designed from the ground up to suit Honda's popular K engines

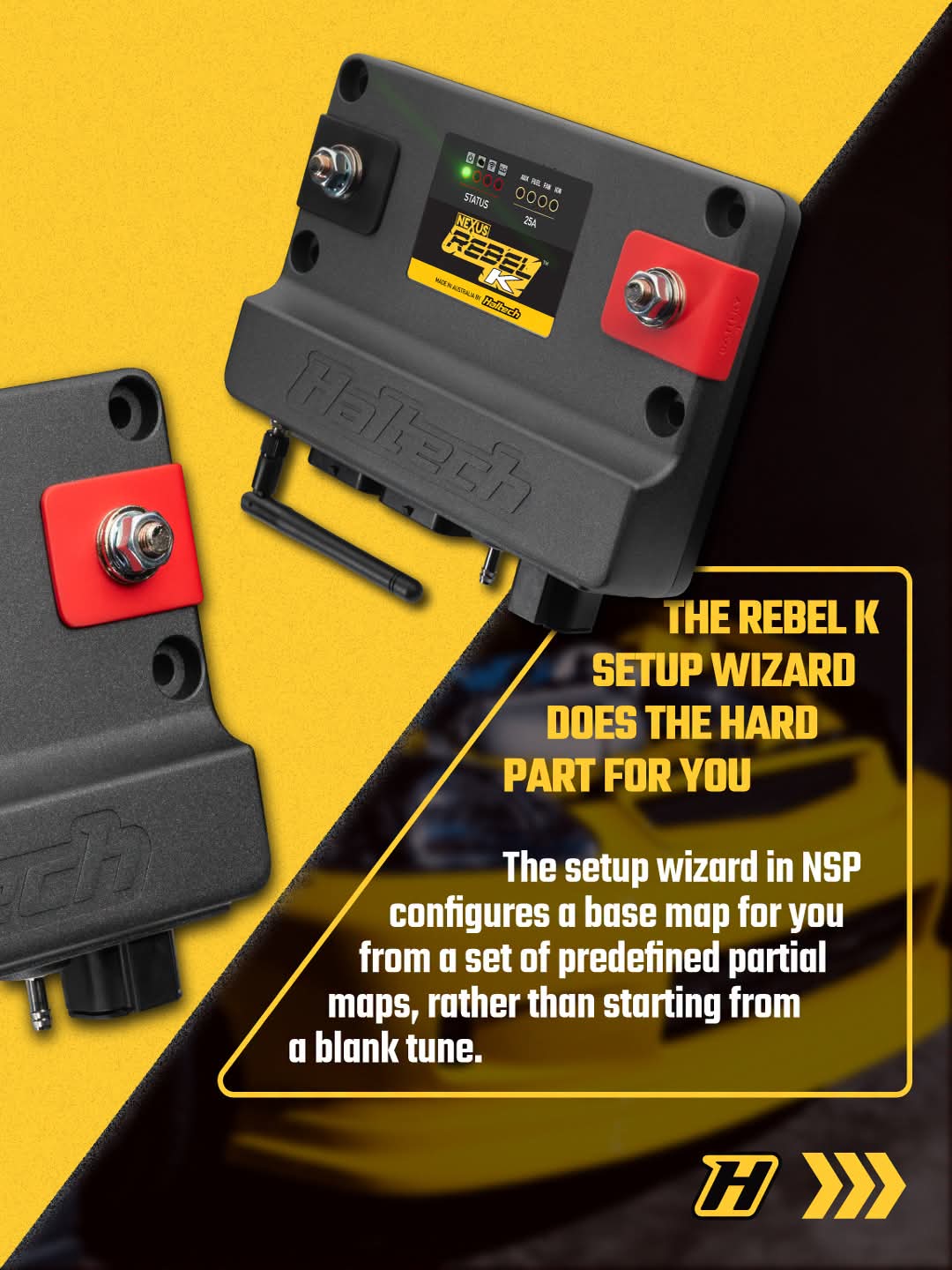

Start-up is a breeze thanks to the new Rebel K Set-up Wizard in our NSP software

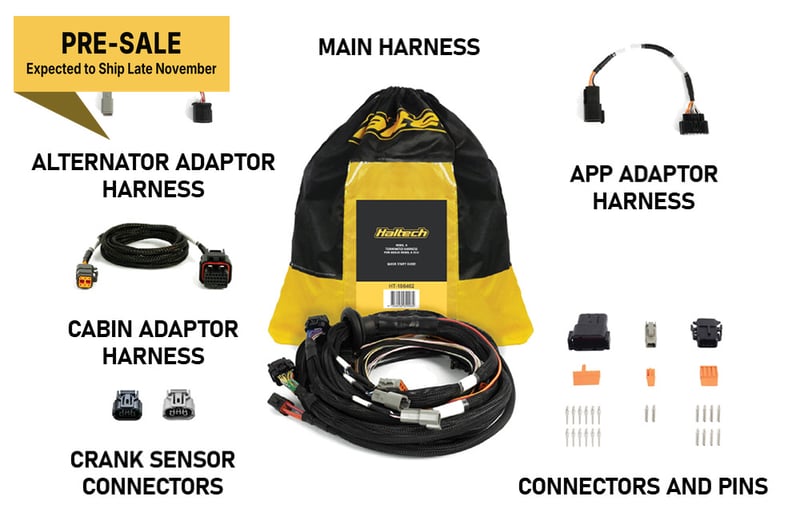

Comes complete with an easy-to-install harness to suit Honda K applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports:
K20A
K24A
K24Z

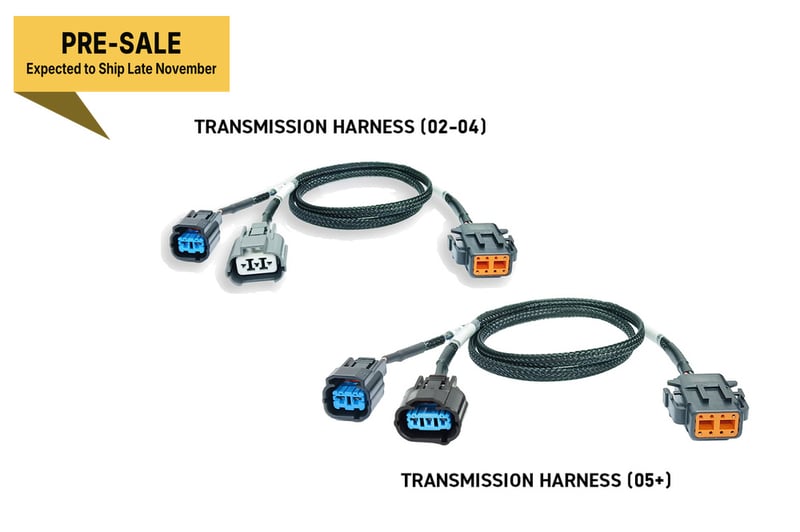

Manual Transmissions Only - Kit supplied with sub-harnesses to suit 2002-04 and 2005+ Honda K series transmissions
Please note
No ignition sub-harness required - factory K-series ignition coil connectors are built into the harness

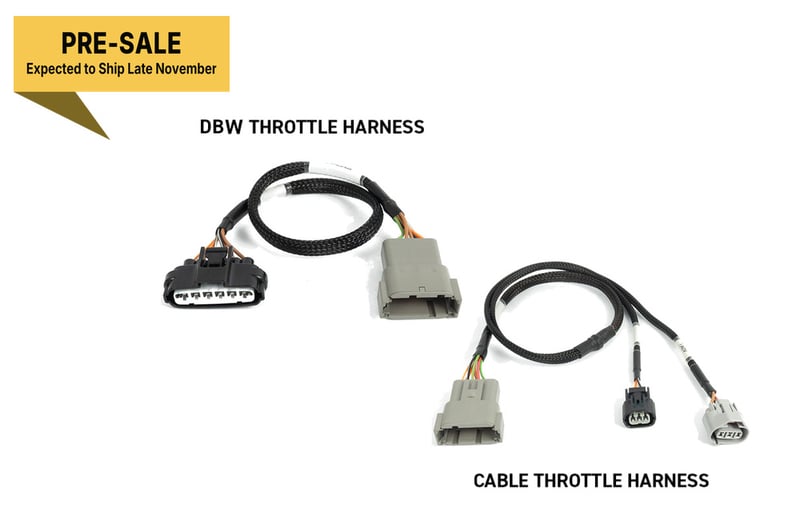

Kit supplied with both cable throttle and DBW throttle sub-harnesses

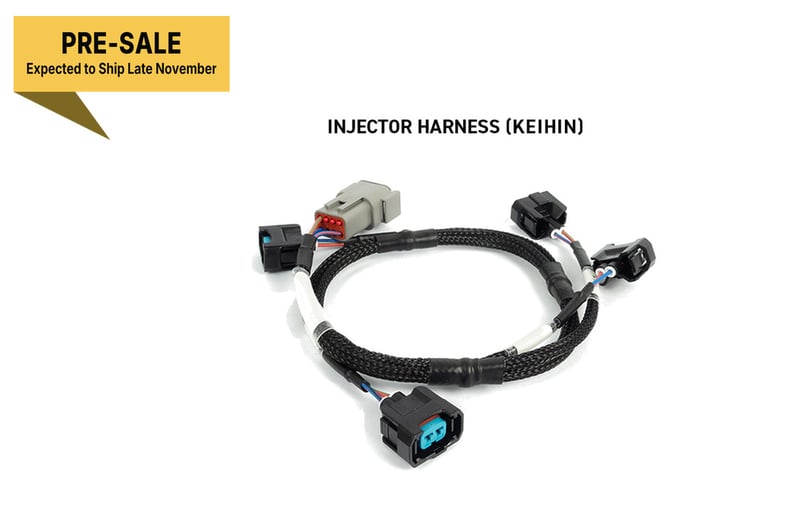

Kit supplied with Keihin injector harness. EV6 (USCAR), EV1 and Sumitomo (Denso) injector harnesses available to be purchased separately - see part numbers HT-186013, HT-186014, HT-186015
Does Not Support
Automatic transmissions, OEM air temperature sensor, OEM knock sensor, OEM O2 sensor, VTEC pressure switch, Thermofan switch, Reverse switch (transmission), Serial communications with factory-fitted Honda DBW modules, Serial communications with factory-fitted Honda BCM / ICC modules (no factory A/C request, coolant gauge, etc), Low impedance injectors
