- Direct fit for the 2017+ Honda Civic Type R
- 48% increase in core volume
- 102% increase in fin surface area
- Features a 1.57" thick, efficiently brazed aluminum core
- Full aluminum construction including durable, TIG-welded end tanks
- Strutted tubes for maximum durability
- Increased fluid capacity for optimal heat dissipation
- Efficient temperature regulation for both stock and modified vehicles
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Give your CTR the cooling power it desperately needs with the Mishimoto 2017+ Honda Civic Type R Performance Aluminum Radiator. Honda’s top-rung Civic took the hot-hatchback world by storm, but there’s still one thing that’s holding it back – heat. The K20C1 is quite the powerhouse in the Civic, but the stock cooling system just can’t keep up.
Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters, we ditched the skinny core and plastic end tanks for a full aluminum, TIG-welded construction, sure to stand up to abuse on the street, track or drag strip. Our design also features a 1.57” thick core, increasing core volume by 48% and external fin surface area by 102% for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability. The 2017+ Honda Civic Type R Performance Aluminum Radiator is available in a polished finish, and includes our magnetic drain plug to collect any metallic debris in your cooling system, This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.

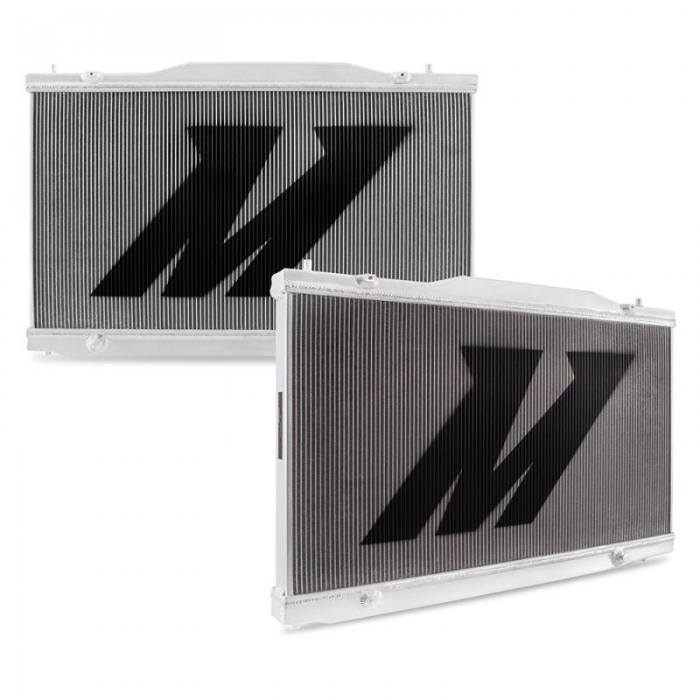

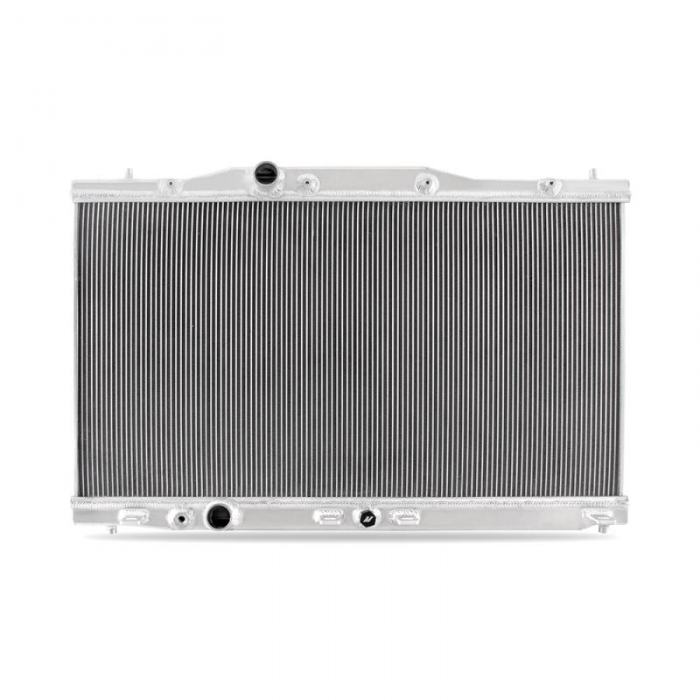

(1) Aluminum Radiator
(1) Magnetic Drain Plug

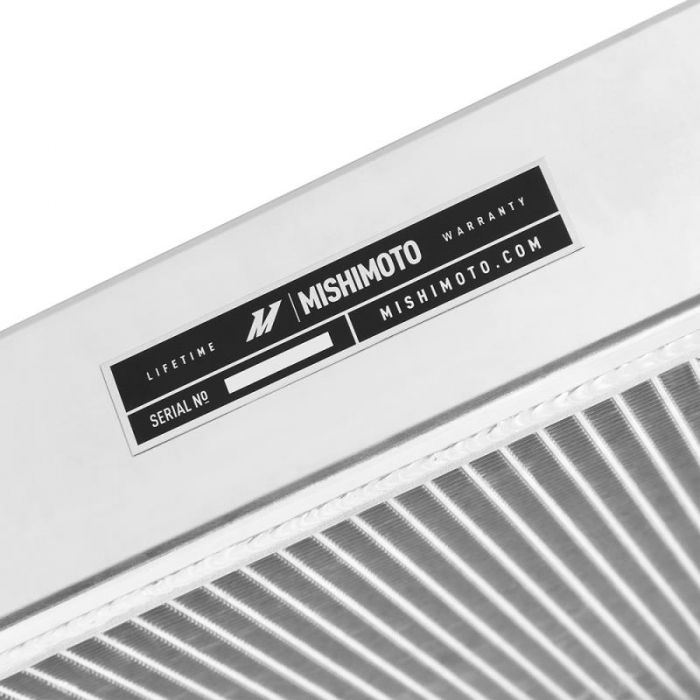

Mishimoto Lifetime Warranty
ENGINE CODES K20C1
CHASSIS CODES FK8
FITS 2017+ Honda Civic Type R
OVERALL HEIGHT 18.1" DRAIN PLUG THREAD SIZE (M12) x 1.5
OVERALL LENGTH 27.9" ROWS 1 DUAL PASS False OVERALL WIDTH 4" CORE LENGTH 26.7"
CORE HEIGHT 14.8"
CORE THICKNESS 1.57"
